The BS-G4525 Jet shrink machine adopts a high-quality stainless steel heating tube, and the internal two-way heat circulating air makes the heat even, constant temperature, stable and reliable, low noise, and long life.
Whatsapp：
+86 17838313979E-mail：
[email protected]The jet heat shrink packaging machine adopts ceramic quartz constant temperature heat storage tube, electronic stepless speed automatic temperature adjustment, solid state relay control, stable and reliable, low noise and long life. It uses heat shrink film to wrap the product in a tight package to protect the product from the outside environment. The packaged product can be sealed, moisture-proof, and impact-proof, and is suitable for tight packaging and palletizing of multiple items.
Powerful motor
Hot air circulation
Enlarge the furnace path
Intelligent temperature control

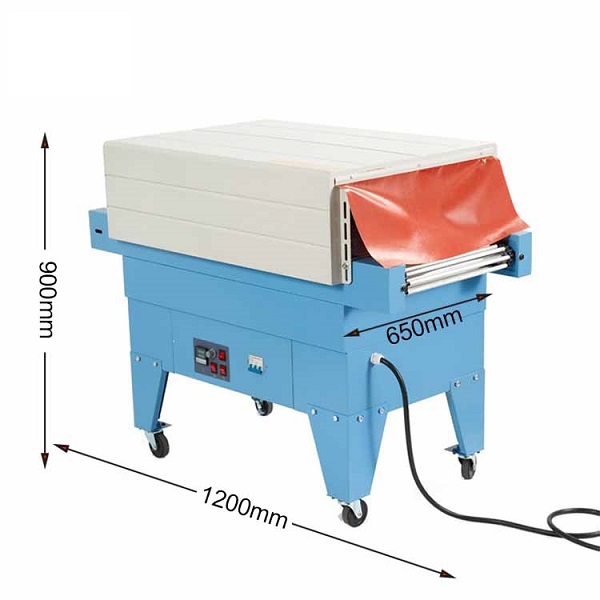

| Model | BS-4525 |
| Voltage | 220V/50-60HZ |
| Power | 7.5KW |
| Tunnel size(mm) | 900L*450W*250H |
| Temp. Range | 0-300℃ |
| Max.Load | 10KG |
| Speed | 0-10m/min |
| Machine Size(mm) | 1200L*650W*1100H |
| Weight | 90KG |
| Conveyor Style | Net style/ Chain style /Teflon mesh |
1. Dust is not sticky, easy to clean, life for a long time;
2. Intelligent digital display temperature controllerBS-G4525;
3. Jet shrink machine adjusts the height of the furnace passage;
4. Jet heating, internal circulation of hot air in furnace passage;
| Material | PVC | PP | POF |
| Thickness(mm) | 0.02-0.06 | 0.02-0.04 | 0.03-0.1 |
| Heating time(s) | 5-10 | 6-12 | 8-16 |
| Shrink temperature(℃) | 110-130 | 130-170 | 130-170 |
N0.1 shrinking furnace height adjustable chain conveyor;
N0.2 hot air internal circulation structure metal heating pipe;
NO.3 intelligent digital display temperature controller is more accurate and stable;
The jet heat shrink packaging machine is an efficient and reliable packaging equipment suitable for various industries. Its advanced technology and simple operation make it ideal for product packaging. Whether it is to protect the integrity of the product or improve packaging efficiency, the jet shrink packaging machine can meet the needs and bring greater benefits to the enterprise.
