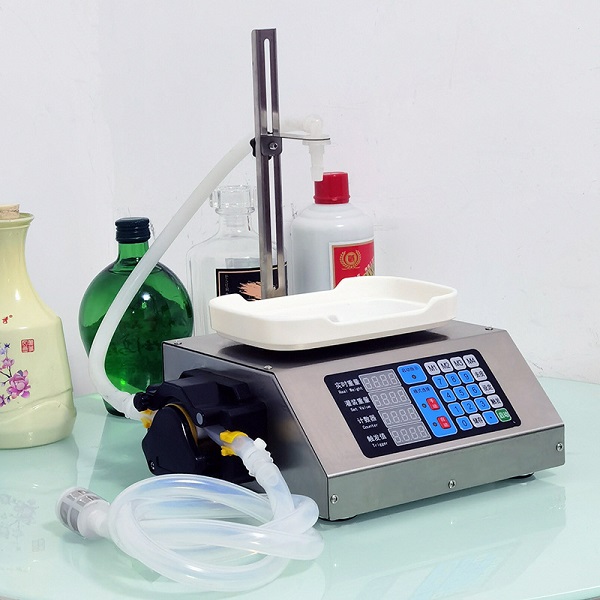

CSY-3500 Bottle Liquid Filler Peristaltic Pump Filling Machine

The CSY-3500 Peristaltic pump filling machine adopts a peristaltic pump, which is accurate in filling, small and beautiful in appearance, and convenient to carry. There are automatic weighing, overload alarm, automatic counting, automatic start, automatic deceleration, automatic stop, data storage, flow adjustment, weight calibration, quantitative filling according to time, factory reset, and other functions.

  Description

The CSY-3500 Peristaltic pump liquid filling machine adopts a peristaltic pump, which is accurate in filling, small and beautiful in appearance, and convenient to carry. There are automatic weighing, overload alarm, automatic counting, automatic start, automatic deceleration, automatic stop, data storage, flow adjustment, weight calibration, quantitative filling according to time, factory reset, and other functions. The bottle liquid filler is suitable for filling cosmetics emulsion, oil, water, perfume, and other liquids.

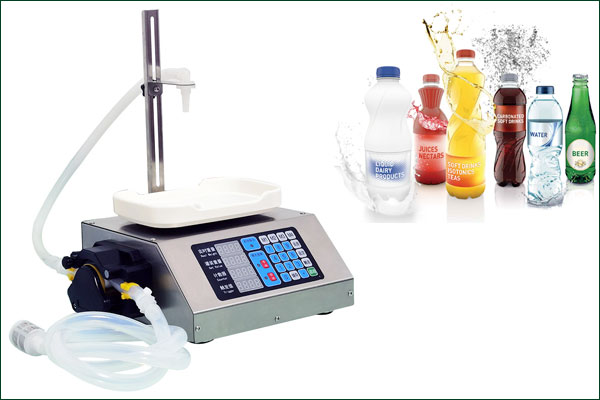

Peristaltic pump liquid filling machine

Bottle Liquid Filling Machine Advantages

No mutual pollution, easy to clean;
Peristaltic pump, easy to change the tube, no smell;
High-temperature resistance, acid, and alkali resistance, corrosion resistance;
Can weigh quantitative filling, time quantitative filling, automatic filling, and manual filling;

CSY-3500 Peristaltic Pump Filling Machine Parameter

Model CSY-3500
Recommended filling 10-1000g
Maximum weighing 3 kg
Division value 1 g
Pump type Peristaltic
Maximum flow rate 2.5L/min
Filling error ≤1 g
Stand height 0~32cm
Water pipe material silicone tube
Water pipe specification 7*11 mm
Water pipe length 1.5+0.5 m
Host size 18*18*12 cm
Packing size 35*23*19cm
Package weight 3 kg
Rated power 40 W

Liquid Filling Machine Benefits

Simple operation and easy use;
Automatic frequency conversion, ultra-high precision;
There is a large difference in bottle weight, and the filling has no effect;

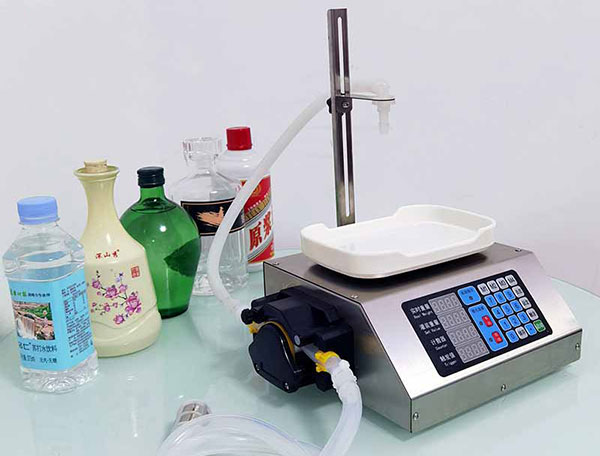

bottle liquid filling machine

CSY-3500 Peristaltic Pump Filling Machine Features

1. CSY-3500 Peristaltic pump filling machine Each model has an English version, with foreign plugs and English manuals.

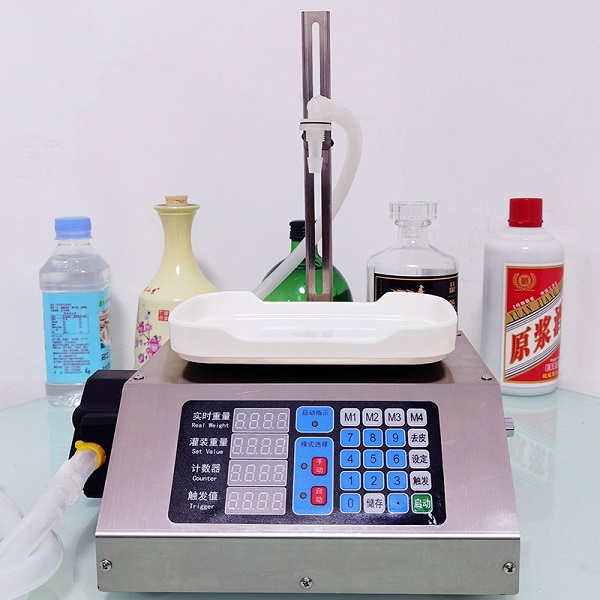

2. Panel display: Weighing weight, setting amount, counter, trigger value, and flow rate value, using LED digital tube display.

3. Peristaltic pump: Pump water by squeezing the water pipe, that is, the roller squeezes the hose from the outside of the hose to squeeze the liquid out, and the liquid only passes through the water pipe. Clean and pollution-free, easy to change tubes, easy to clean.

4. Basic functions: Real-time weighing, overload alarm, automatic counting, automatic start, automatic speed reduction, automatic stop, data storage, flow rate adjustment, weight calibration, quantitative filling according to time, factory reset, and other functions.
