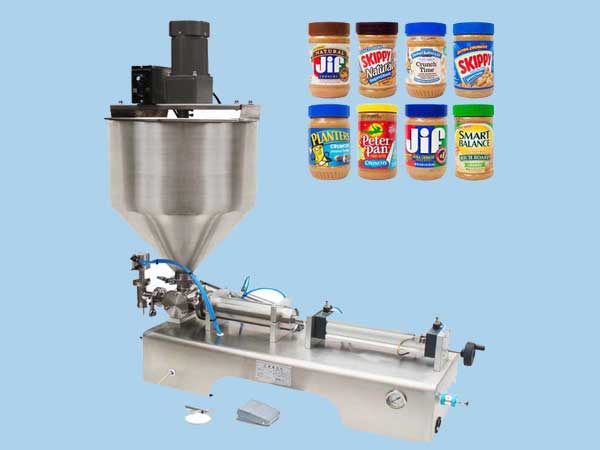

Peanut quantitative filling machine, also known as semi-automatic piston filling machine, is a reliable and efficient solution for precise filling of high-viscosity liquids and pastes. The machine is equipped with high-precision pneumatic components to meet the diverse needs of food, condiments, medicine and other industries. Peanut quantitative filling machine has the characteristics of simple structure, reliability and convenient adjustment. All material contact parts are made of 316L stainless steel, which meets GMP requirements. Peanut quantitative filling machine is not only suitable for peanut butter, but also for viscous paste products such as sesame paste, ketchup, jam, cream and milk.

Quantitative Filling Machine Features

Wide range of uses

Automatic peanut butter quantitative filling machine is suitable for filling liquids and pastes, such as butter, sauces, jams, cream, shampoo, liquid soap, lubricants, motor oil products.

Adjustable filling volume and high filling accuracy

Quantitative filling machine adopts volumetric plunger pump, pneumatic control, general filling volume can be adjusted in the range of 500-3000ml, with extremely low error rate, ≤±1%.

A variety of filling heads are available

We provide quantitative filling machines with different numbers of heads to meet specific needs. Common types are 2-head, 4-head, 6-head, 12-head types.

No overflow, dripping. Equipped with automatic filling nozzle to ensure no overflow, and a collection tray is provided under the filling nozzle to avoid dripping.

Uniform and controllable speed

Convenient for cleaning and replacement of containers of other shapes or sizes.

Quantitative Filling Machine Filling Method

First, the peanut butter quantitative filling machine adopts gravity filling, which uses gravity to allow the peanut butter to flow naturally to complete the filling process. A storage barrel is set above the filling machine, and the prepared peanut butter is poured into it, and then transported to the filling head below through a pipe. A container is set below the filling head, and the container is placed on the conveyor belt. When the container reaches the specified position, the filling head will automatically start filling. During the filling process, the peanut butter flows into the filling head through the pipe, and then into the container until the peanut butter in the container reaches the specified weight or volume.

Secondly, the quantitative filling machine for peanut butter adopts quantitative filling method, so that the weight or volume of peanut butter can be accurately adjusted as needed to ensure that the peanut butter in each container is the same. A control system is set in the quantitative filling machine, and the flow of peanut butter can be adjusted by the control system. Set the weight or volume of peanut butter to be filled in each container as needed, and then start the quantitative filling machine for filling. During the filling process, the control system automatically controls the flow of peanut butter to ensure that the weight or volume of peanut butter in each container is the same.

Finally, the quantitative filling machine for peanut butter adopts automatic control method. This method can automate the entire filling process, reduce manual intervention, and improve production efficiency. An automatic control system is set in the filling machine, which can monitor and control the entire filling process. The weight or volume of peanut butter to be filled in each container can be set by the control system, and the flow of peanut butter can be automatically adjusted. During the filling process, the automatic control system automatically starts and stops the quantitative filling machine, and automatically detects and corrects any abnormalities.

If you are interested in our quantitative filling machine or have any questions, please let us know. Please feel free to contact us!
