Description

1. Automatic Suction Machine
2. Corona Processor
3. Rotary Die Head
4. Automatic Winder
5. Mick Weight System
6. Fast Screen Changer

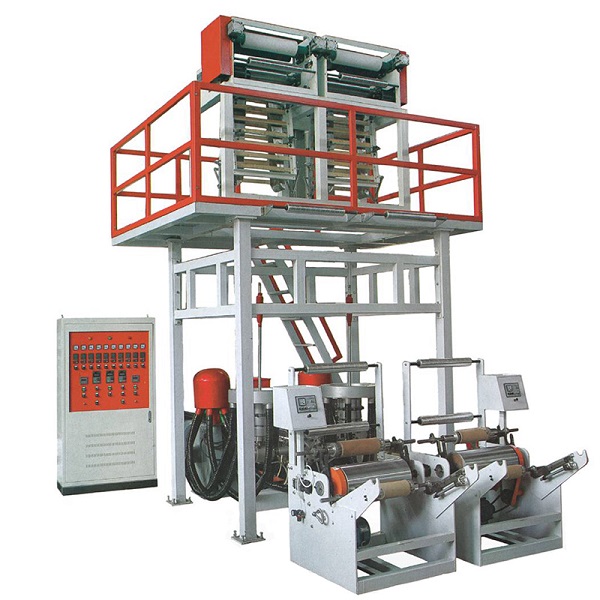

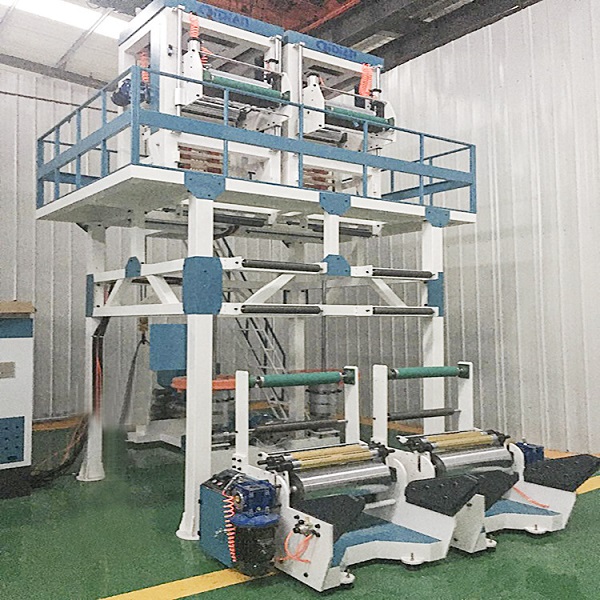

The main technical parameters of YZH-G-500/600 Single screw double mold head film blowing machine

Model: YZH-G-500 YZH-G-600
YZH-G-500/600 Single screw double mold head film blowing machine Suitable For Raw Materials: HDPE+LLDPE+CACO3 HDPE+ LLDPE+CACO3
Film Width: 450mm 550mm
Film Thickness: 0.008-0.05mm 0.008-0.05mm
Maximum Production: 30kg/h*2 40kg/h*2
Overall Power: 25kw 40kw
Overall Weight: 2200kg 2500kg
Installation Dimension: 5000*2300*4500mm 5200*2500*4800mm
