Description

1. Micro weight controller
2. Auxiliary feeder
3. Corona treater
4. Fast net changer
5. Auto winder

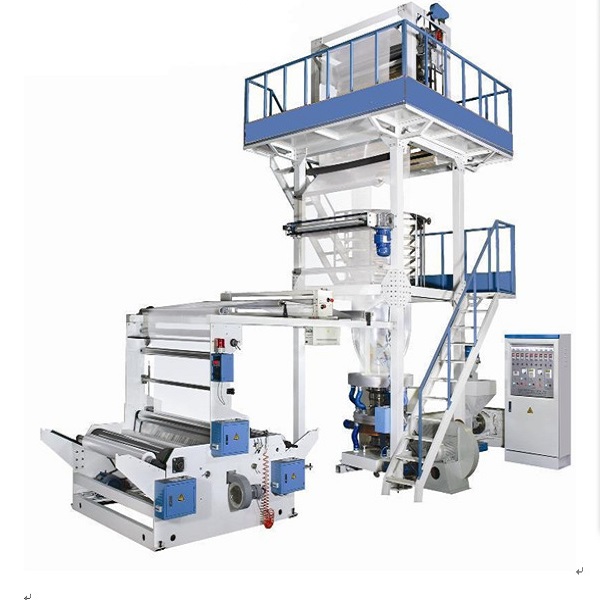

The main technical parameters of YZH-G Biodegradation film blowing machine

Model: YZH-G-50 YZH-G-55
Diameter of screw: φ50 φ55
Screw L/D ratio: 30:1 30:1
Screw speed: 15-120r/min 15-120r/min
Max Output(kg/h): 55 80
YZH-G Biodegradation film blowing machine Range of die: φ120 φ150
Single-sided Thickness of Film: 0.01-0.1mm 0.01-0.1mm
Max. The Folding Width of the Film is: 600mm 800mm
Outline diameter(L X WX HX) (mm): 5000x3200x5500 5000x3500x6000
