Description

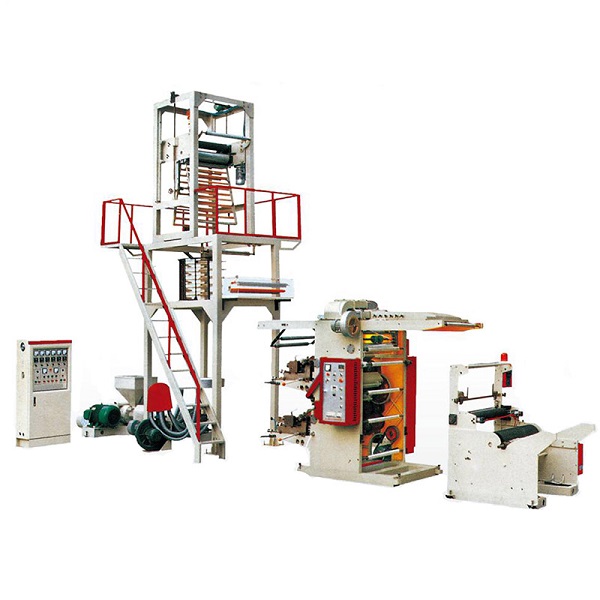

YZH-G-II-45-60 Film blowing and offset press unit be fit to puff height, low-pressure polyethylene industry film, and farm-oriented mulch film. Continue printing the various plastic film, spread and despise the leather, package products, and Shan two-sided printing once it is completed. 360-degree register sets, not affecting the film elongating accurately, can make print adjustments, the image is at anytime arbitrarily limpid to the color exquisite.

The main technical parameters of YZH-G-II-45-60 Film blowing and offset press unit

Type: YZH-G-II-600 YZH-G-II-800 YZH-G-II-1000
Suitable Material: HDPE LDPE LIDPE HDPE LDPE LIDPE HDPE LDPE LIDPE
Diameter of screw: φ50 φ55 φ60
Screw L/D ratio: 30-32:1 30-32:1 30-32:1
Reduced diameter of film(mm): 800 1000 1200
Single-face Thickness of film(mm): 0.015-0.1 0.015-0.1 0.015-0.1
Max Output(kg/h): 80 90 120
Power of main motor(kw): 15×2 18.5×2 22×2
Heating Power (kw): 26 30 42
Outline diameter(L X WX HX) (mm): 4200x2200x4500 4600x2400x5000 5000x2800x6500
Weight(T): 4 5 6
