Description

1. AUTOLOADER
2. AIR COMPRESSOR
3. SPECIAL DIE
4. ROTARY DIE DEVICE
5. DOUBLE SIDES WINDER

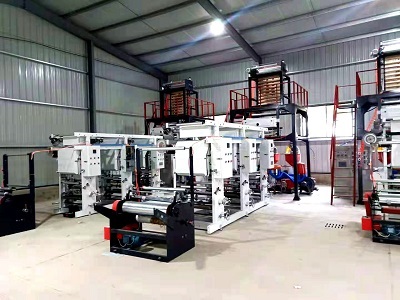

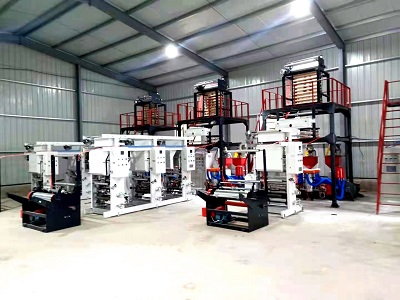

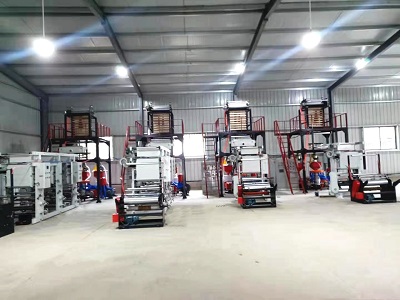

The main technical parameters of the YZH-G-II-50/55/65 PE blown film rotogravure printing line machine

Type: YZH-G-II-600 YZH-G-II-800 YZH-G-II-1000
Suitable Material: HDPE LDPE LIDPE HDPE LDPE LIDPE HDPE LDPE LIDPE
Diameter of screw: φ50 φ55 φ65
Screw L/D ratio: 32:1 32:1 32:1
Width of blowing film(mm): 600 800 1000
The thickness of the film(mm): 0.001-0.05 0.001-0.05 0.001-0.05
Max Output(kg/h): 80/100 100/125 125/150
Driving motor(kw): 15 18.5 22
Printing Length(mm): 250-1000mm 250-1000mm 250-1000mm
The precision of color printing: Broadwise 0.2mm Broadwise 0.2mm
Direction 0.2mm Direction 0.2mm Direction 0.2mm
Outline diameter(L X WX HX) (mm): 8000x2200x4500 8500x2400x5000 9000x2800x5500
Weight(kg): 5500 6500 8000
